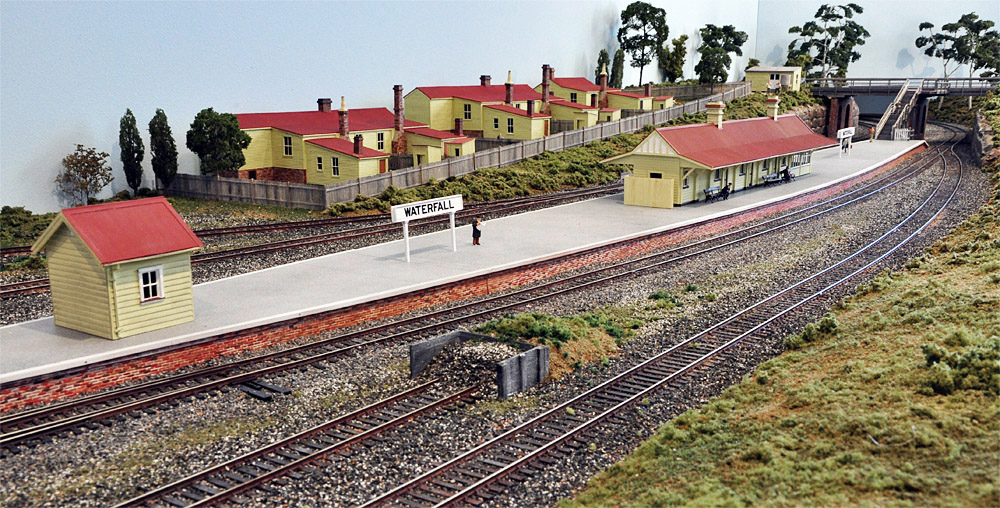

Waterfall station is 38 km south from Central station, on the outskirts of the Sydney metropolitan area, on the Illawarra line.  The layout is a representation of Waterfall station and yard in the 1960s.

The station opened in 1886, moving to its third and current location in 1905. The station building as modelled was demolished in 1995. The Sydney electrified suburban network did not reach Waterfall until 1980.

We decided in January 2009 that our next exhibition layout needed to be based on a prototypical track plan from the Illawarra line and be adaptable to a 7.2 metre exhibition layout. After scouring the ARHS track plan database we decided to model Waterfall. The layout had its first outing in August 2010.


The track plan we developed incorporates the general track layout and structures present in the late 1950s and early 1960s. All the structures are  scratch built from original plans and photographs.




click on image to enlarge









return to the top of the page




Layout construction

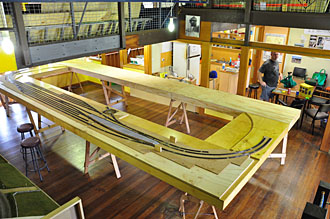

Baseboard construction
Track and electricals




Prototype notes, plans and construction photos

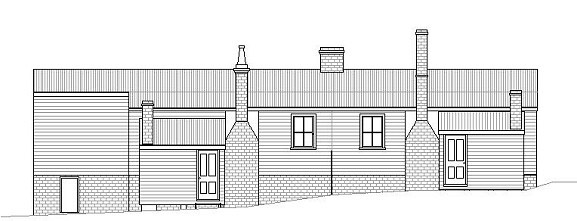

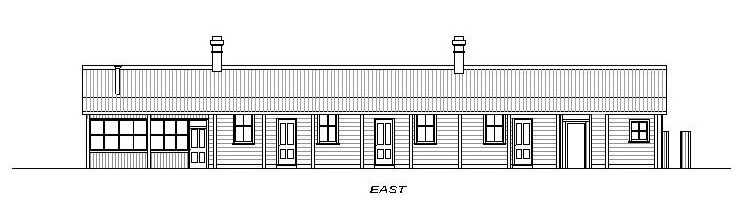

Worker's cottages Station Building

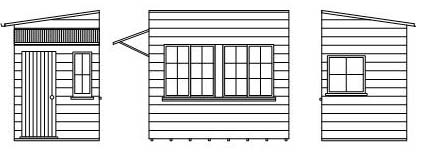

Weighbridge and Yard hut

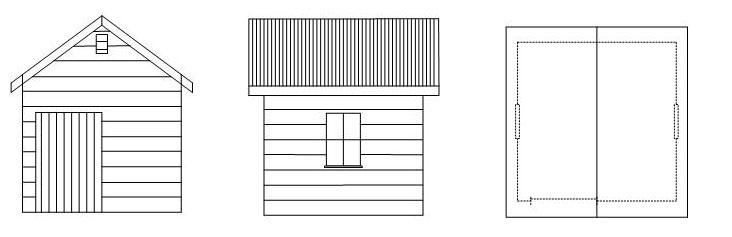

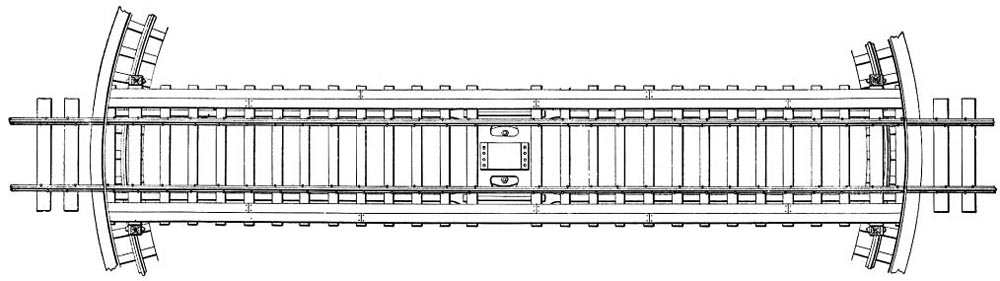

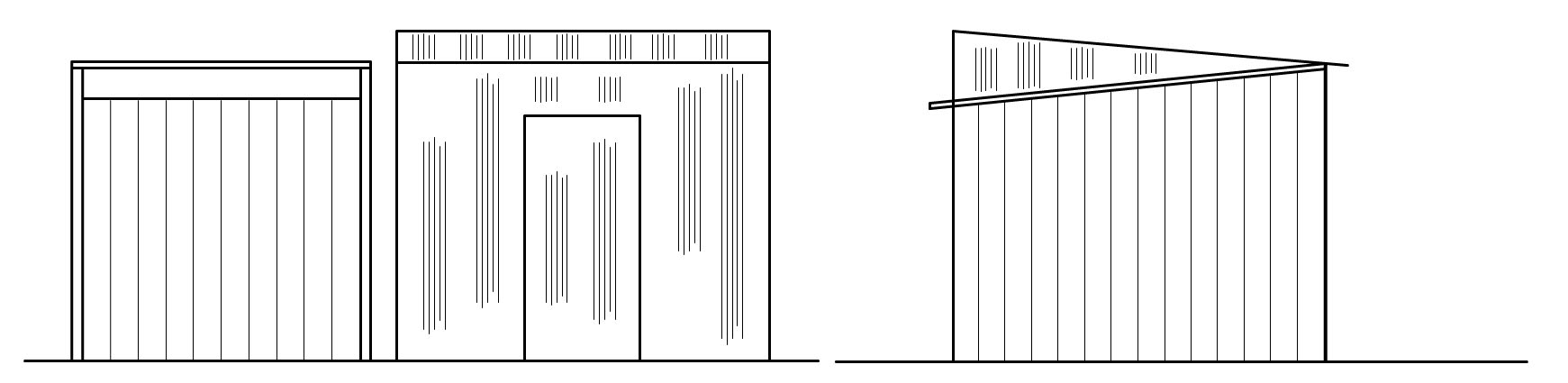

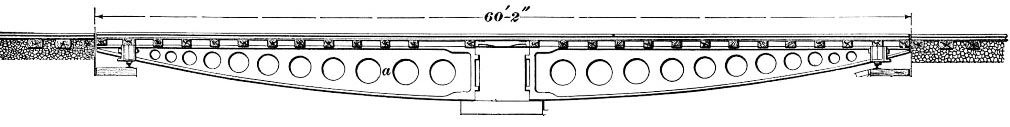

Fettlers' Shed Turntable Lamp Room

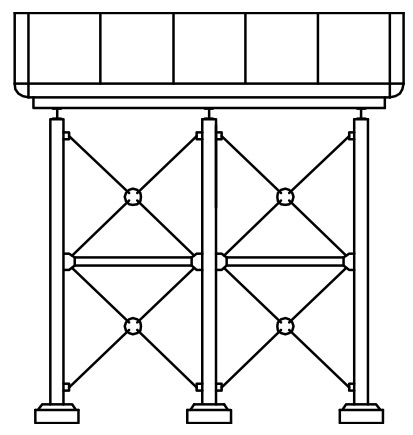

Water Tank

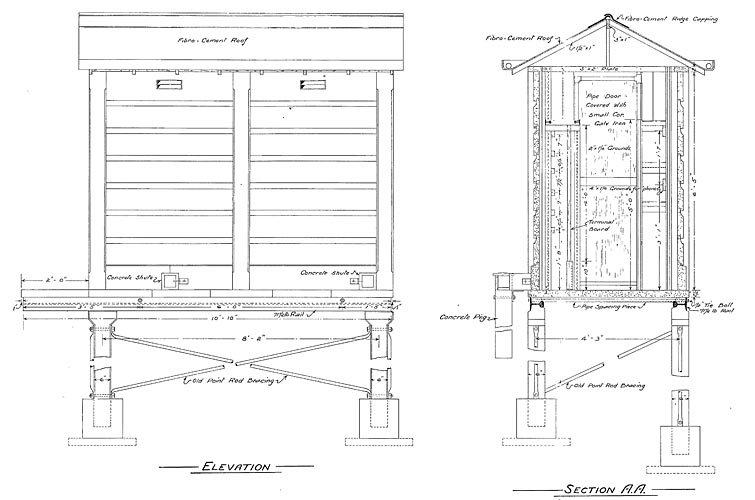

Relay Hut
