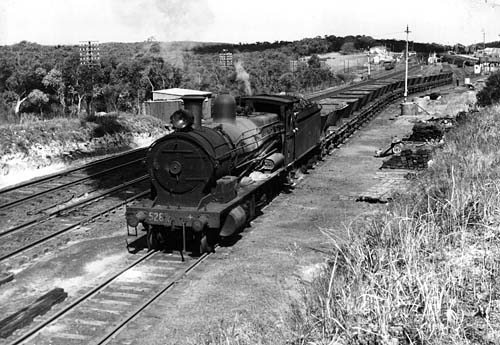

IMRA's
new exhibition layout needed to be
based on a prototypical track plan from the Illawarra line and be
adaptable to a
7.2 metre exhibition layout. After scouring the ARHS track plan
database we decided to model Waterfall in late January 2009.
The
track plan developed incorporates the general track layout and
structures present in the late 1950s and early 1960s. All the
structures will be scratch built from original plans and
photographs.
|
 |
 |
BASEBOARDS
| We constructed the baseboards February through March 2009. They are made from 12mm CD structural plywood and are 2400mm long and 915mm wide. The ends of the baseboards are 24mm thick and are fitted steel locating pins |
 |
 |
| Base board internal bracing pattern |
7 sheets of CD 12mm structural plywood and a HO S
truck ready to go |
 |
 |
| worker's cottages page |

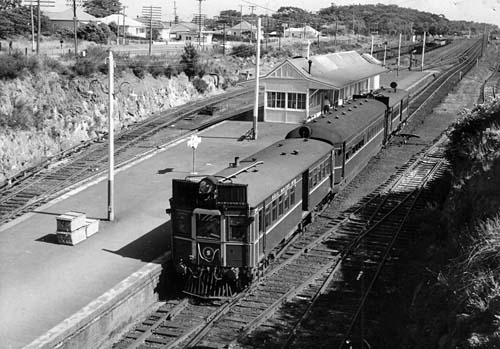

link to the Waterfall station
page |
|
The
track and point work have been laid in Peco code 83. The track will be
laid upon 17mm
plywood sub road bed and 6mm cork. The points are actuated
using Tortoise point motors.
The
layout is designed to be run with either DC or DCC control.
follow the link for further infromation about the track and electrics electrics |
