IMRA - Waterfall Layout Construction

return to Waterfall main page

We constructed the baseboards February through March 2009. They are made from 12mm CD structural plywood and are 2400mm long and 915mm wide. The ends of the baseboards are 24mm thick and are fitted steel locating pins

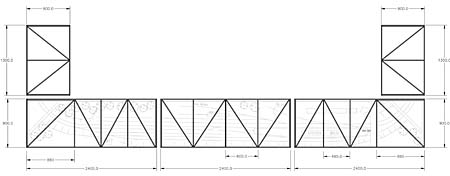

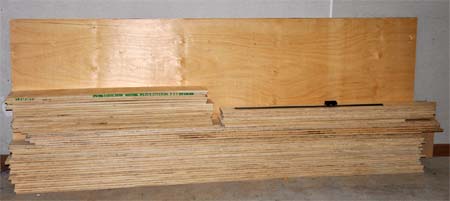

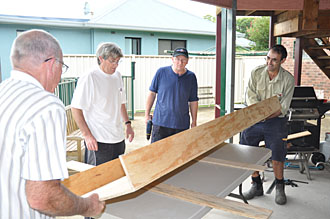

Base board internal bracing pattern	7 sheets of CD 12mm structural plywood and a HO S truck ready to go

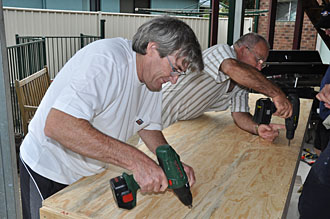

approximately 370 32mm 8g screws later.

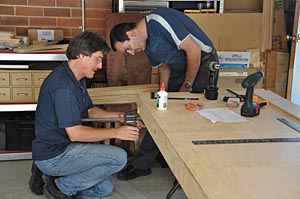

Base Board construction February 2009
